Enhancing Corrugated Box Performance with High CS Adhesive Solutions from Maheshwari Starchtech Pvt. Ltd.

Starch-Based Adhesive Glue

1. Introduction: Maheshwari Starchtech Pvt. Ltd.

Maheshwari Starchtech Pvt. Ltd. (MSPL) is a pioneering name in the starch-based adhesive industry, providing high-quality, performance-driven glue solutions specifically designed for the corrugated packaging sector. With a deep focus on R&D and customer satisfaction, MSPL has consistently delivered innovations that improve productivity, box strength, and cost efficiency for corrugators across India.

One of MSPL’s flagship solutions, the High Compression Strength (High CS) adhesive, addresses a core need in packaging today improving the load-bearing capability and structural reliability of corrugated boxes.

2. Adhesive Comparison: One Bag Mix vs. High CS Adhesive (Trial Report)

MSPL conducted a field trial to compare the performance of its High CS adhesive with conventional One Bag Mix (OBM) adhesive at the Miskhat plant (Khopoli).

Trial Setup:

    Box Size: 290 × 215 × 335 mm Flute Type: A Board Configuration: 3 Ply Paper Grades: 140 GSM (Top), 120 GSM (Fluting & Medium Liner) Standard CS Benchmark: 97 kgf Adhesive Ratio:1:3 Viscosity: 80 B4 second

Compression Strength Results:

Trial No. OBM CS (kgf) MSPL High CS (kgf) % Increase in CS
1 93 98 5.38%
2 97 103 6.19%
3 94 107 13.83%
4 98 111 13.27%
  • Key Insight:The High CS adhesive consistently delivered 6–14% higher compression strength, showcasing its effectiveness in improving box durability and stacking performance
Starch-Based Adhesive Glue

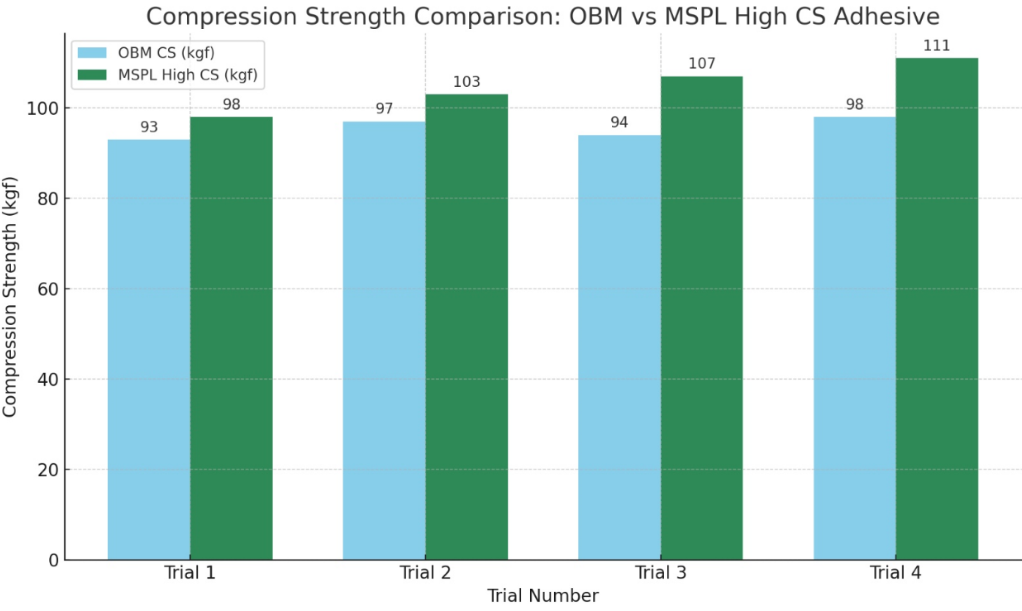

3. Visual Comparison: Bar Graph Representation

To provide a clearer picture of adhesive performance, the bar graph below compares Compression Strength (CS) values for OBM and MSPL High CS adhesives across four trials:

Bar Graph: OBM vs MSPL High CS Adhesive – Compression Strength Comparison

    X-Axis: Trial Numbers (1 to 4) Y-Axis: Compression Strength (kgf) Bar Colors: Sky Blue = OBM CS Green = MSPL High CS

This bar chart demonstrates the consistent and significant improvement achieved by MSPL’s High CS adhesive in each trial, validating its superior bonding performance.

4. Conclusion

Maheshwari Starchtech Pvt. Ltd. has once again demonstrated its leadership in adhesive innovation through its High CS adhesive solution. For corrugators seeking improved packaging strength, efficiency, and reliability, MSPL’s product offers:

    Up to 14% improved box compression strength Better bonding consistency and reduced rejection rates Compatibility with automated and manual production lines

MSPL’s High CS adhesive is not just a glue it’s a performance enhancer for your packaging line.
